Gigabyte Used Refurbished AM4 DDR4 Desktop motherboard AM4 X570SI AORUS PRO AX

1. AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ AMD Ryzen™ 4000 G-Series/ AMD Ryzen™ 3000 Series/ AMD Ryzen™ 3000 G-Series/ AMD Ryzen™ 2000 Series/ AMD Ryzen™ 2000 G-Series Processors

(Please refer “CPU Support List” for more information.)

1. AMD X570

1. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
2. Dual channel memory architecture
3. Support for DDR4 5300(O.C.) / 5200(O.C.) / 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
   * ECC memory (ECC mode) support varies by CPU
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules

(Please refer “Memory Support List” for more information.)

1. 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
   * Support for DisplayPort 1.4 version.
2. 2 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
   * Support for HDMI 2.1 version, HDCP 2.3, and HDR.

Support for up to 3 displays at the same time
Maximum shared memory of 16 GB

1. Realtek^® ALC1220-VB Audio CODEC
   * The back panel line out jack supports DSD audio.
2. Support for DTS:X^® Ultra
3. High Definition Audio
4. 2/4/5.1/7.1-channel
   * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

1. Intel^® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
2. BLUETOOTH 5.2
3. Support for 11ax 80MHz wireless standard and up to 1.2 Gbps data rate
   (Actual data rate may vary depending on environment and equipment.)

1. AMD Ryzen™ 5000 Series*/3000 Series Processors
   support PCIe 4.0 x16 mode
2. AMD Ryzen™ 5000 G-Series/4000 G-Series/2000 Series Processors
   support PCIe 3.0 x16 mode
3. AMD Ryzen™ 3000 G-Series/2000 G-Series Processors
   support PCIe 3.0 x8 mode

1 x M.2 Socket 1 connector, integrated in the CPU, for the wireless communication module (M2_WIFI)
* Actual support may vary by AMD CPU’s specification

1. AMD Ryzen™ 5000 Series/3000 Series Processors
   support SATA and PCIe 4.0 x4/x2 SSDs
2. AMD Ryzen™ 5000 G-Series/4000 G-Series/3000 G-Series/2000 Series/ 2000 G-Series Processors
   support SATA and PCIe 3.0 x4/x2 SSDs

1 x M.2 connector (M2B_SOCKET), integrated in the Chipset, supporting Socket 3, M key, type 2280 SSDs:

1. Supporting SATA and PCIe 4.0^(Note)/3.0 x4/x2 SSDs

4 x SATA 6Gb/s connectors, integrated in the Chipset:

1. Support for RAID 0, RAID 1, and RAID 10
   * Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.

(Note) For AMD Ryzen™ 5000 Series/3000 Series Processors only.

1. 4 x USB 3.2 Gen 1 ports on the back panel

Chipset:

1. 1 x USB Type-C^® port, with USB 3.2 Gen 2 support on the back panel
2. 1 x USB Type-C^® port, with USB 3.2 Gen 1 support available through the internal USB header
3. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
4. 2 x USB 3.2 Gen 1 ports available through the internal USB header
5. 2 x USB 2.0/1.1 ports available through the internal USB header

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 2 x system fan headers
5. 1 x addressable LED strip header
6. 1 x RGB LED strip header
7. 4 x SATA 6Gb/s connectors
8. 2 x M.2 Socket 3 connectors
9. 1 x front panel header
10. 1 x front panel audio header
11. 1 x speaker header
12. 1 x USB Type-C^® header, with USB 3.2 Gen 1 support
13. 1 x USB 3.2 Gen 1 header
14. 1 x USB 2.0/1.1 header
15. 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
16. 1 x Clear CMOS jumper

＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

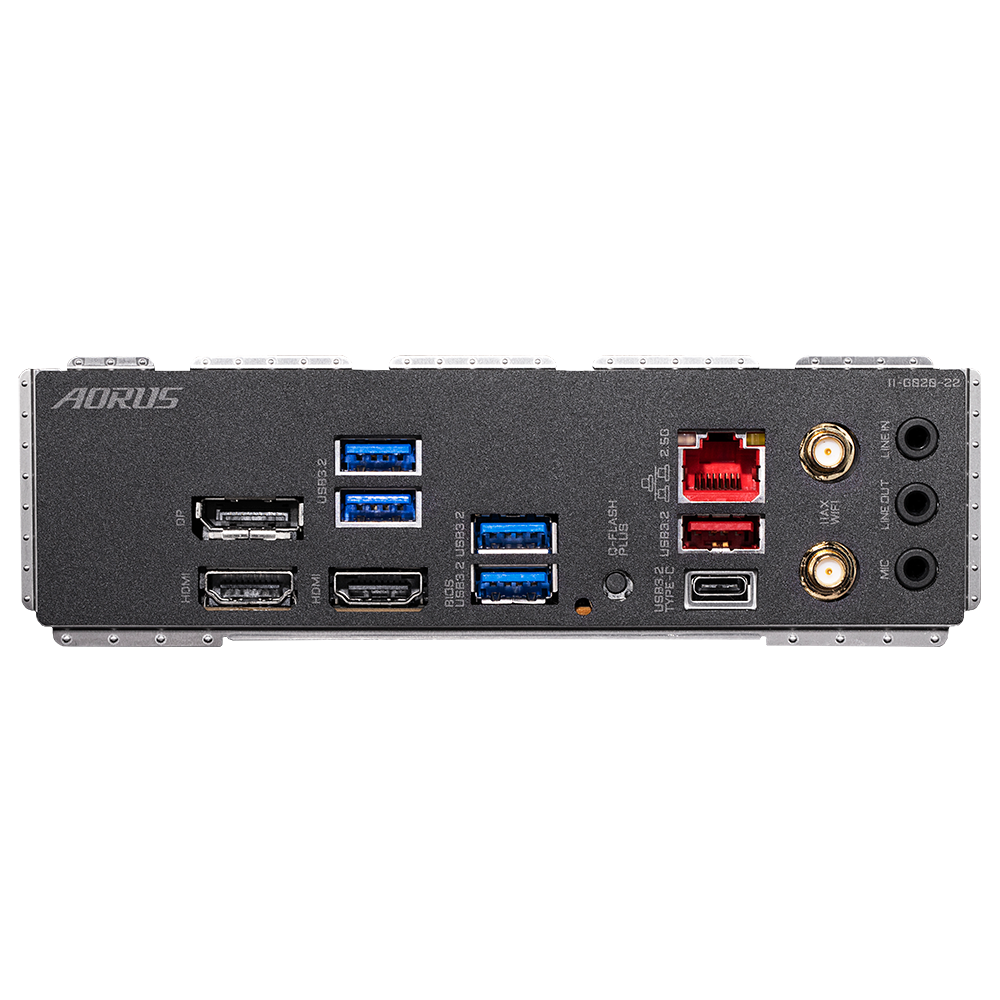

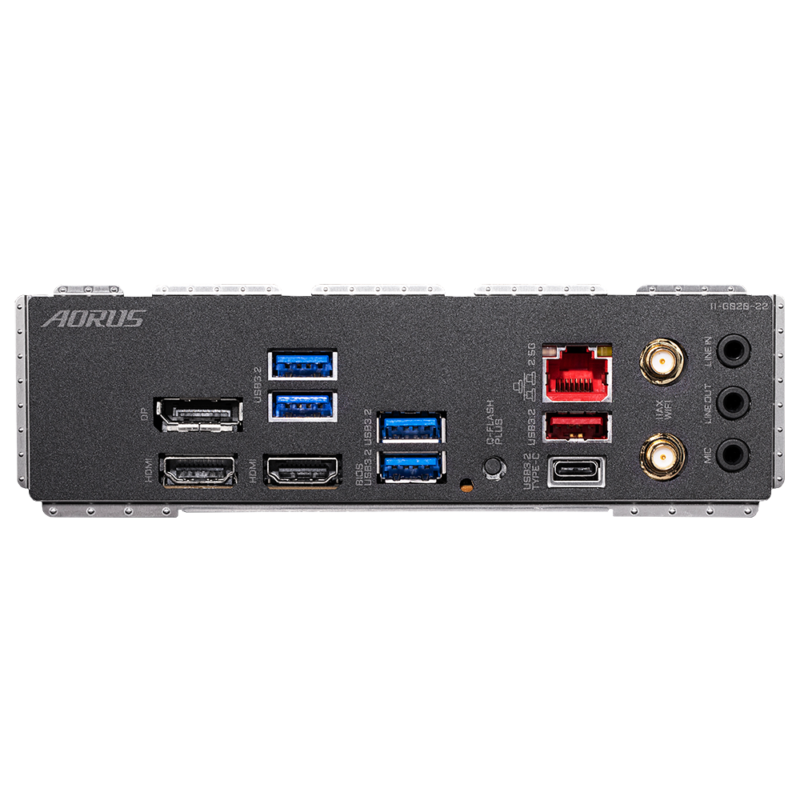

1. 1 x DisplayPort
2. 2 x HDMI ports
3. 1 x USB 3.2 Gen 2 Type-A port (red)
4. 4 x USB 3.2 Gen 1 ports
5. 1 x USB Type-C^® port, with USB 3.2 Gen 2 support
6. 1 x Q-Flash Plus button
7. 1 x RJ-45 port
8. 2 x SMA antenna connectors (2T2R)
9. 3 x audio jacks

1. iTE^® I/O Controller Chip

1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Water cooling flow rate detection
5. Fan fail warning
6. Fan speed control
   * Whether the fan speed control function is supported will depend on the cooler you install.

1. 1 x 256 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

1. Support for APP Center
   * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
   @BIOS
   EasyTune
   Fast Boot
   Game Boost
   ON/OFF Charge
   RGB Fusion
   Smart Backup
   System Information Viewer
2. Support for Q-Flash Plus
3. Support for Q-Flash
4. Support for Xpress Install

1. Norton^® Internet Security (OEM version)
2. cFosSpeed

1. Support for Windows 11 64-bit
2. Support for Windows 10 64-bit

1. Mini-ITX Form Factor; 17.0cm x 17.0cm
