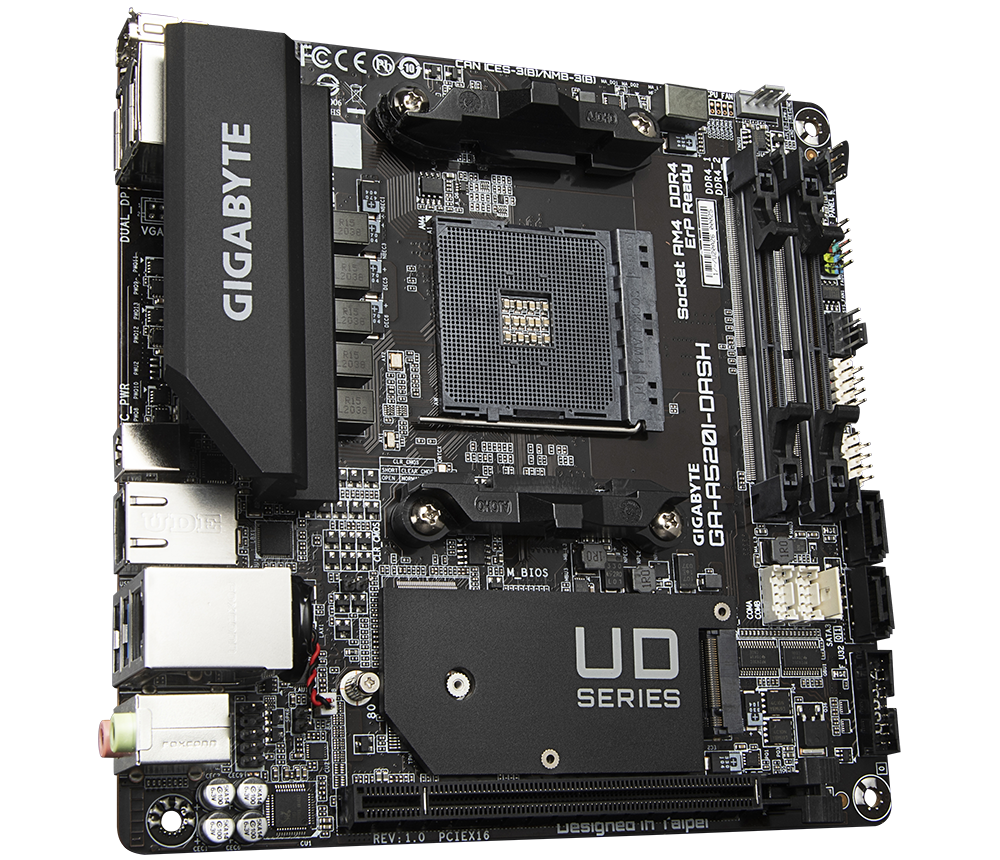

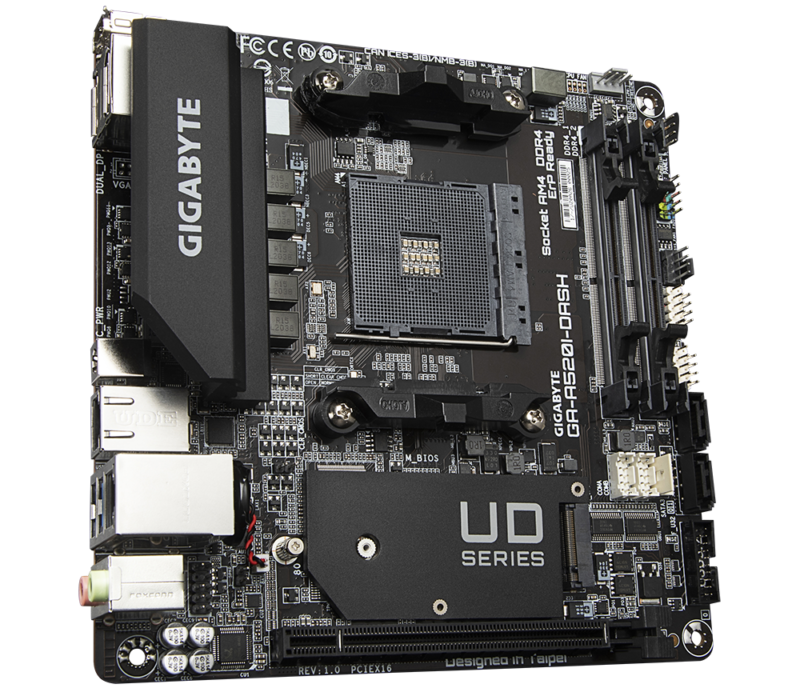

Gigabyte Used Refurbished AM4 Desktop motherboard AM4 GA-A520I-DASH

1. AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors

(Please refer “CPU Support List” for more information.)

1. AMD A520

1. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
2. Support for DDR4 3200/2933/2667/2400/2133 MHz memory modules
3. Dual channel memory architecture
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules

(Please refer “Memory Support List” for more information.)

1. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
   * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
2. 2 x DisplayPort port, supporting a maximum resolution of 5120×2880@60 Hz
   * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.

Support for up to 3 displays at the same time
Maximum shared memory of 16 GB

1. Realtek^® Audio CODEC
2. High Definition Audio
3. 2/4/5.1/7.1-channel
   * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE’s website for details on configuring the audio software.

1. 2 x Realtek^® GbE LAN chips (1 Gbps/100 Mbps)

1. Infineon chip, supporting TPM 2.0

1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16

1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)

Chipset:

1. 2 x SATA 6Gb/s connectors
2. Support for RAID 0 and RAID 1

1. 2 x USB 3.2 Gen 1 ports on the back panel

Chipset:

1. 2 x USB 3.2 Gen 1 ports available through the internal USB header
2. 4 x USB 2.0/1.1 ports available through the internal USB headers

1. 1 x CPU fan header
2. 1 x system fan header
3. 1 x M.2 Socket 3 connector
4. 2 x SATA 6Gb/s connectors
5. 1 x SATA power connector
6. 1 x front panel header
7. 1 x front panel audio header
8. 1 x USB 3.2 Gen 1 header
9. 2 x USB 2.0/1.1 headers
10. 2 x serial port headers
11. 2 x speaker header (SPKR/SPEAKER)
12. 1 x Clear CMOS jumper

＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

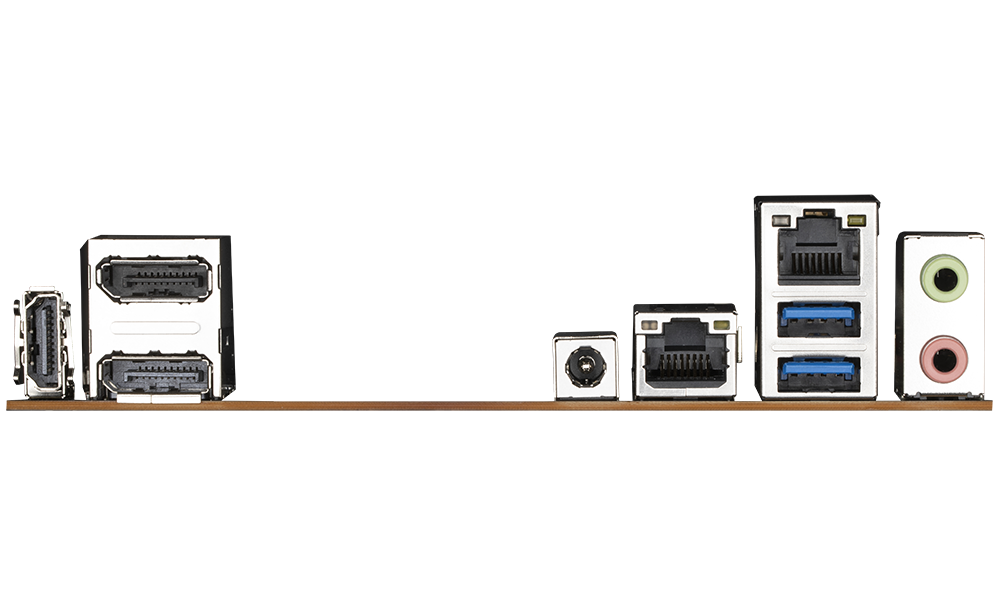

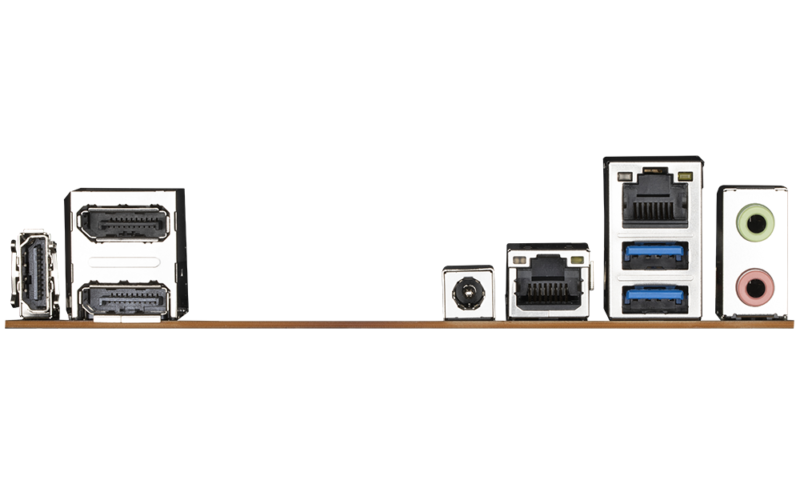

1. 1 x HDMI port
2. 2 x DisplayPorts
3. 1 x DC In Power Connector
4. 2 x USB 3.2 Gen 1 ports
5. 2 x RJ-45 ports
6. 2 x audio jacks

1. iTE^® I/O Controller Chip

1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Overheating warning
5. Fan fail warning
6. Fan speed control
   * Whether the fan speed control function is supported will depend on the cooler you install.

1. 1 x 128 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

1. Support for APP Center
   * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
   @BIOS
2. Support for Q-Flash
3. Support for Xpress Install

1. Norton^® Internet Security (OEM version)
2. Realtek^® 8118 Gaming LAN Bandwidth Control Utility

1. Support for Windows 11 64-bit
2. Support for Windows 10 64-bit

1. Mini-ITX Form Factor; 17.0cm x 17.0cm

1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors’ website or 3rd party website.
2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
