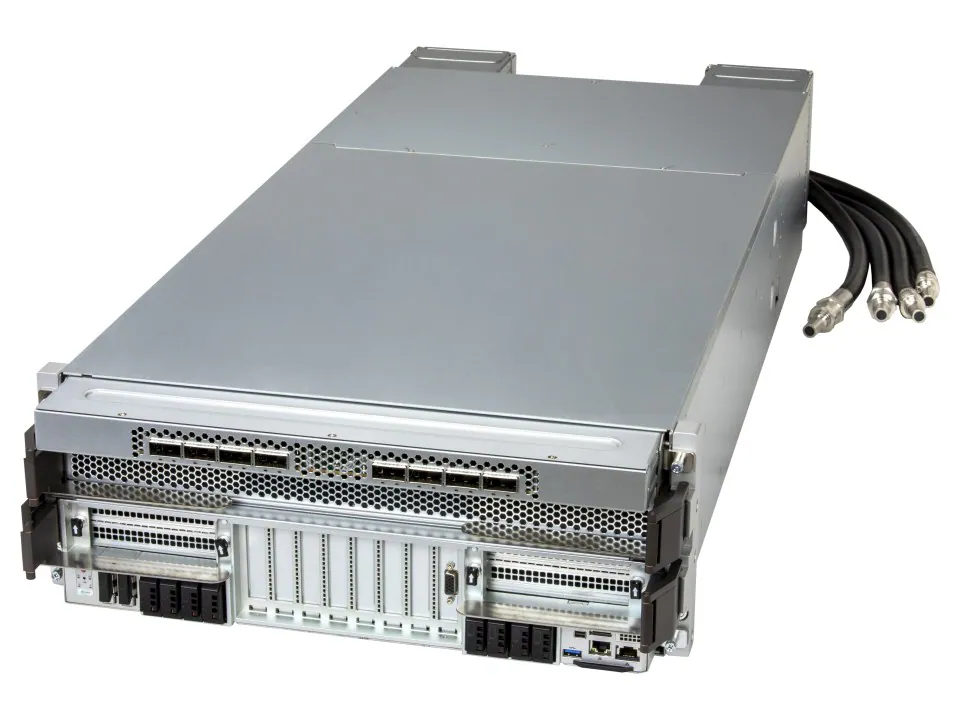

Supermicro SYS-422GS-NB3RT-ALC | 4U GPU Server

DP Intel 4U Liquid-Cooled System with NVIDIA HGX B300 8-GPU (complete rack and onsite service are required)

Key Applications

  • AI/Deep Learning Training
  • Artificial Intelligence
  • Deep Learning Inferencing
  • LLMs & Multi-modal LLMs

Key Features

  1. Complete liquid-cooled rack integration is required for purchase
  2. DLC-2 supporting up to 95% of heat capture via cold plates (with max config)
  3. Dual Intel® Xeon® 6700 series processors with P-cores, up to 350W TDP
  4. NVIDIA HGX B300 8-GPU with 5th Generation NVLink® 1.8TB/s, 2.3TB of HBM3e GPU memory per system
  5. 32x DIMMs with up to 8TB at 5200MT/s or up to 4TB at 6400MT/s DDR5 RDIMM
  6. 8x NVIDIA ConnectX®-8 SuperNICs (up to 800Gb/s) and 4x PCIe Gen 5 x16 slots
  7. 8x Hot-swap E1.S NVMe storage drive bays and 2x M.2 NVMe boot drives
  8. 4x redundant (2+2) 6.6kW Titanium level power supplies

Original price was: $1,969,900.00.Current price is: $1,899,900.00.

Add to compare
Add to wishlist

Guaranteed Safe Checkout

Features & Compatibility

Product SKUs
SYS-422GS-NB3RT-ALC
Motherboard
Super X14DBG-LC
Processor
CPU
  • Dual Socket E2 (LGA-4710)
  • Intel® Xeon® 6700 series processors with P-cores
Core Count
  • Up to 86C/172T; Up to 336MB Cache per CPU
Note
  • Supports up to 350W TDP CPUs (Liquid Cooled)​
GPU
Max GPU Count
  • 8 onboard GPUs
Supported GPU
  • NVIDIA SXM: HGX B300 8-GPU (288GB)
  • View GPU Options
GPU-GPU Interconnect
  • NVIDIA® NVLink™ with NVSwitch™
System Memory
Memory
  • Slot Count: 32 DIMM slots
  • Max Memory (1DPC): Up to 4TB 6400MT/s ECC DDR5 RDIMM
  • Max Memory (2DPC): Up to 8TB 6000MT/s ECC DDR5 RDIMM
  • View Memory Options
Memory Voltage
  • 1.1V
On-Board Devices
Network Connectivity
Input / Output
LAN
  • 2 RJ45 10 GbE LAN ports (Intel® X710)
  • 8 OSFP 800 Gb/s InfiniBand LAN ports (NVIDIA ConnectX®-8 SuperNIC)
USB
  • 1 USB 3.0 Type-A port(Front)
  • 1 USB 2.0 Type-A port(Front)
Video
  • 1 VGA port
  • 1 mini-DP port
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 64MB UEFI
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 4U Rackmount
Model
  • CSE-GP405TS-R000NP2
Dimensions and Weight
Height
  • 6.85″ (174 mm)
Width
  • 17.6″ (448 mm)
Depth
  • 39.03″ (991.4 mm)
Package
  • 16.14″ (H) x 31.29″ (W) x 54.92″ (D)
Weight
  • Gross Weight: 258 lbs (117 kg)
  • Net Weight: 222 lbs (101 kg)
Available Color
  • Silver
Front Panel
Buttons
  • Power On/Off
  • UID
LED
  • HDD activity
  • LAN1 activity
  • LAN2 activity
  • Power Fail
  • Power status
Expansion Slots
PCI-Express (PCIe) Configuration
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 8 bays
    • 8 front hot-swap E1.S NVMe drive bays
M.2
  • 2 M.2 NVMe slots (M-key; RAID support via S3808N controller)
  • View M.2 Options
System Cooling
Fans
  • 6x 80mm Fan(s)
Liquid Cooling
  • Direct to Chip (D2C) Cold Plate
Power Supply
4x 6600W Redundant (2 + 2) Titanium Level (96%) power supplies
Dimension (WxHxL) 106.5 x 82 x 335 mm
Input 5900W: 200-207.9Vac / 50-60Hz
6000W: 208-219.9Vac / 50-60Hz
6300W: 220-229.9Vac / 50-60Hz
6500W: 230-238.9Vac / 50-60Hz
6600W: 239-240Vac / 50-60Hz
+12V Max: 111.1A / Min: 0A (200Vac-240Vac) (109.3A only for 5900W)
Max: 130A / Min: 0A (200Vac-240Vac)
12V SB Max: 4A / Min: 0A
Output Type Backplanes (gold finger)
Certification Titanium Level94%+  Titanium Level
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
